HIGHPOINT Rocket 1504 4x M.2

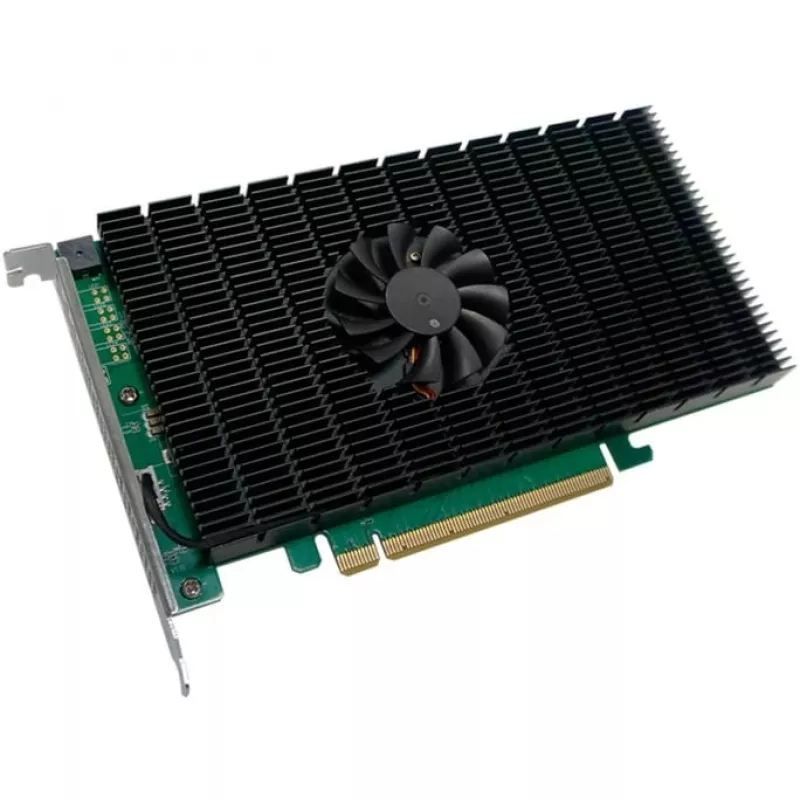

The HighPoint Rocket 1504 is a PCIe 4.0 x16 NVMe RAID controller that delivers up to 28,000 MB/s read and 20,000 MB/s write speeds by aggregating four M.2 NVMe SSDs into a single high-performance array. This adapter transforms Gen4 NVMe drives into a bootable RAID volume, ideal for 4K/8K video editing, large-scale data analysis, and high-transaction databases.

Advantages

Leveraging the PCIe 4.0 x16 host interface, the Rocket 1504 unlocks the full potential of Gen4 NVMe SSDs, eliminating bottlenecks and delivering near-instant data access. Its full-length aluminum heatsink with an active cooling fan ensures sustained performance under heavy loads, while the HighPoint NVMe RAID Engine provides hardware-accelerated RAID 0, 1, 10, and JBOD configurations. The card supports bootable arrays, allowing your operating system to load directly from the RAID volume for faster startup and system responsiveness.

Suitable for

• Content creators and video editors requiring high-speed scratch disks and project storage
• IT professionals building high-performance workstations or servers
• Gamers and enthusiasts seeking extreme storage speed for large game libraries
• Data analysts and scientists working with massive datasets
• System integrators needing reliable, scalable NVMe storage solutions

Key specifications

• Host Interface: PCIe 4.0 x16
• Drive Interface: NVMe (PCIe Gen4)
• Number of M.2 Slots: 4 (supports 2242, 2260, 2280, 22110)
• RAID Levels: 0, 1, 10, Single Disk, JBOD
• Aggregate Data Transfer Rate: Up to 28,000 MB/s Read, 20,000 MB/s Write
• Bootable Support: Yes
• Cooling: Full-length aluminum heatsink with active fan
• Form Factor: Full-height, Half-length PCIe card
• Management Software: HighPoint Storage Manager (WebGUI, CLI)
• Operating System Support: Windows 10/11, Windows Server 2019/2022, Linux Kernel 3.10+, macOS 10.13+

Recommendations

For maximum performance, pair the Rocket 1504 with high-end Gen4 NVMe SSDs and ensure adequate chassis airflow. Use the HighPoint Storage Manager to easily configure and monitor RAID arrays. Ideal for workstations and servers that demand uncompromising storage speed and reliability.
