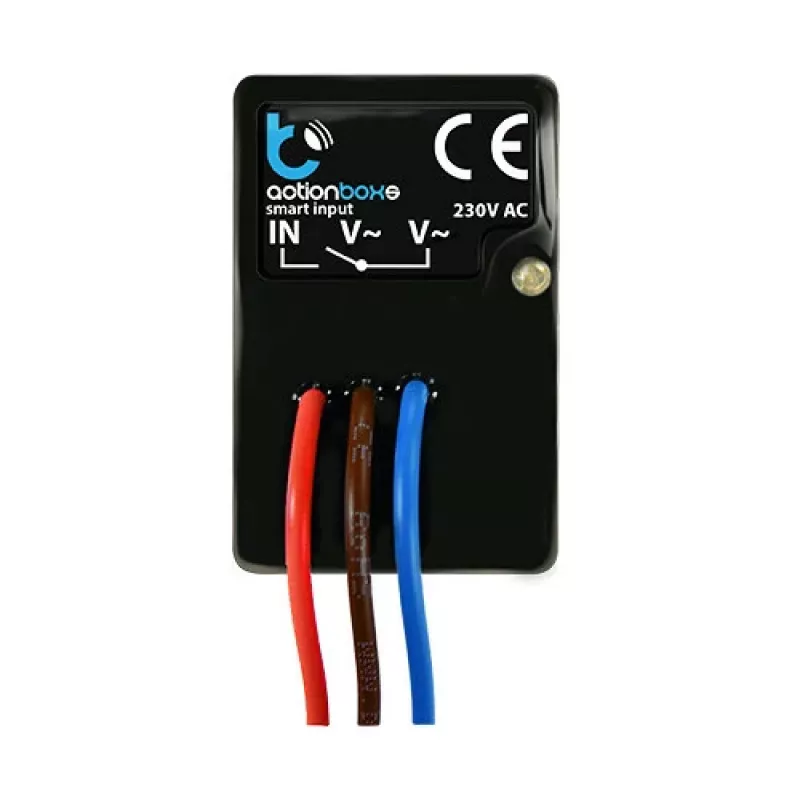

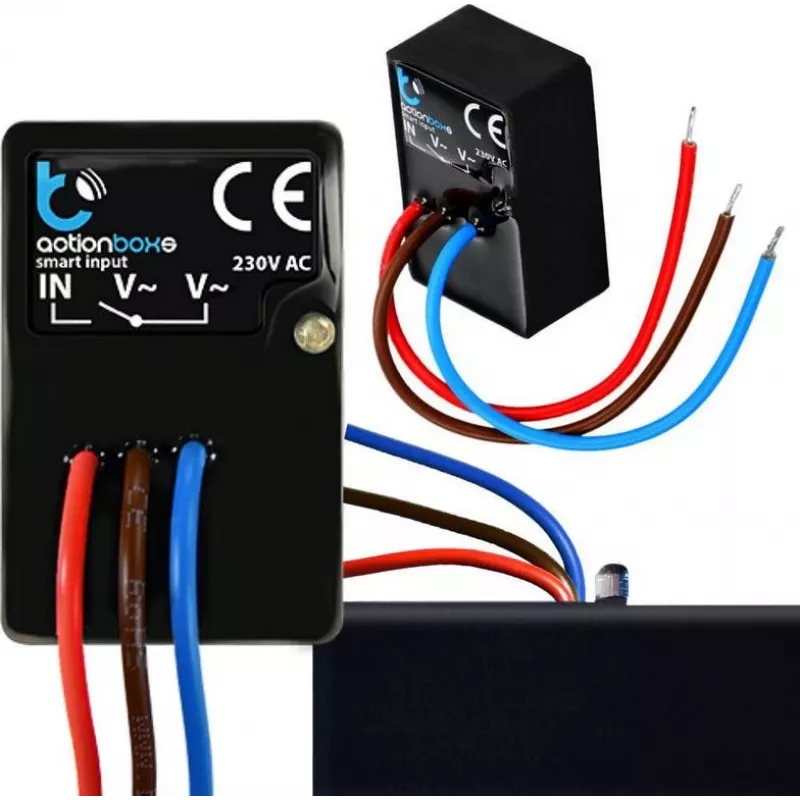

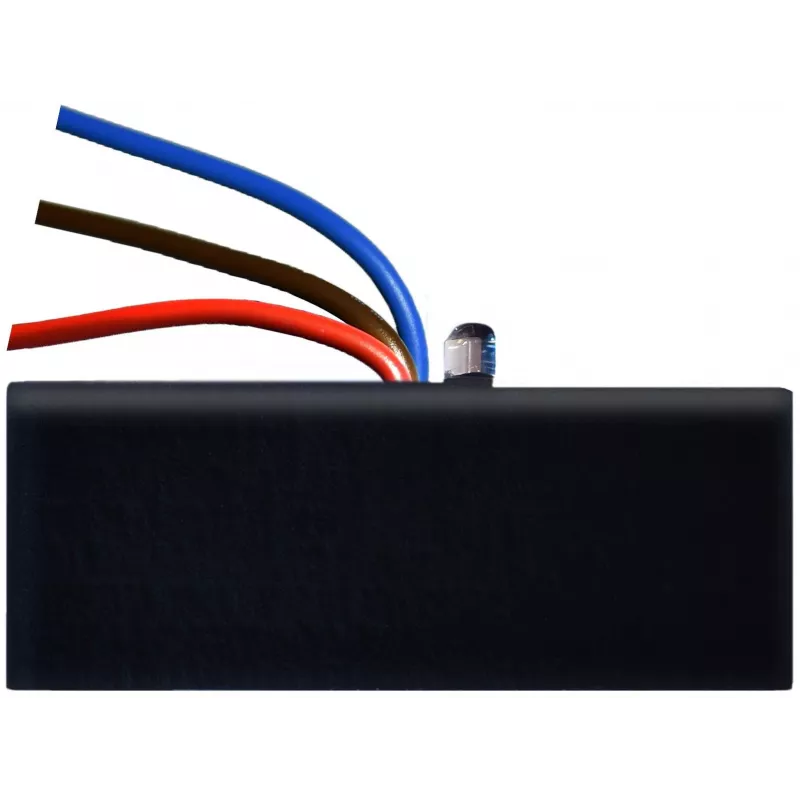

BleBox ActionBoxs wired binært inputmodul

The BleBox ActionBoxs is a compact, Wi-Fi-enabled wired binary input module designed for smart home automation. It allows you to connect up to four independent dry contact or low-voltage sensors, switches, or buttons to your home network, enabling remote monitoring and control via the BleBox ecosystem, MQTT, REST API, or Home Assistant. Ideal for integrating traditional wired devices into a modern smart home system.

Advantages

Easy to install with flush-mount design, supports multiple input modes (momentary, toggle, edge detection, virtual switch), and offers OTA firmware updates for future-proofing. Low power consumption (<1W) and wide operating temperature range (-20 to 50°C) ensure reliable performance.

Suitable for

• Connecting wired sensors (door/window, motion, temperature) to a smart home system
• Integrating traditional push buttons or switches for lighting or scene control
• Monitoring dry contact inputs from security systems or industrial equipment
• Home automation projects requiring custom actions and scene control

Key specifications

• 4 independent wired binary inputs (0-30V DC)
• Wi-Fi 802.11 b/g/n 2.4 GHz
• Power supply: 12-24V DC
• Power consumption: <1W
• Operating temperature: -20 to 50°C
• Mounting: Flush mount (in-wall box)
• Enclosure: Flame-retardant plastic, IP20
• Compatibility: BleBox app, web browser, MQTT, REST API, Home Assistant
• Security: WPA/WPA2
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with a stable 2.4 GHz Wi-Fi network and a 12-24V DC power supply. Ensure proper wiring of dry contact inputs to avoid voltage overload. The module is not waterproof; install indoors only.
