Dahua PFA134-B tilslutningsdåse sort

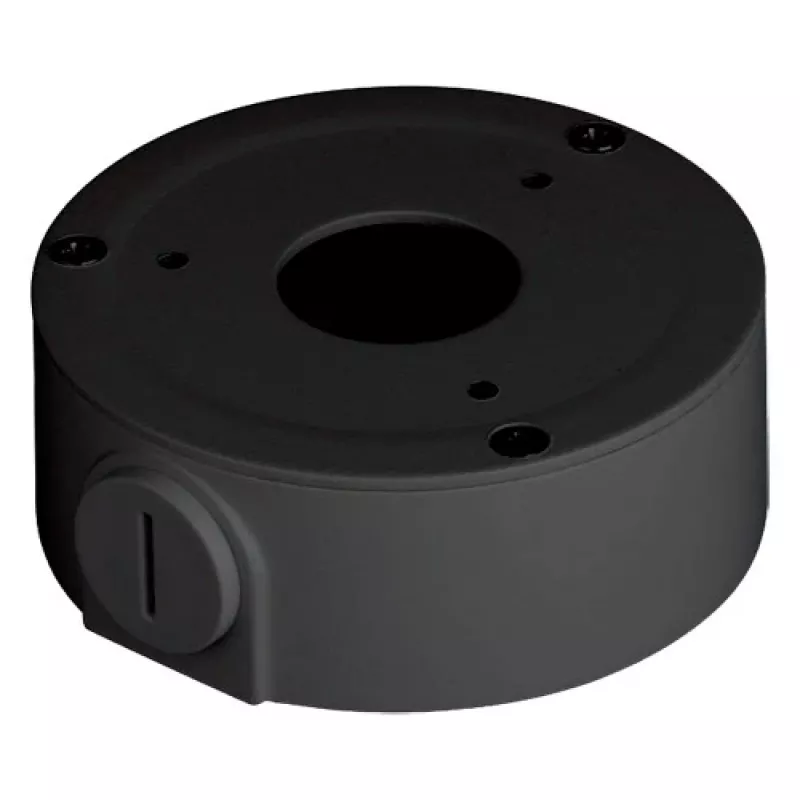

The Dahua PFA134-B is a high-quality junction box designed for secure and reliable installation of Dahua dome cameras. Crafted from durable aluminum with a powder-coated black finish, this junction box provides excellent corrosion resistance and is suitable for both indoor and outdoor use. With an IP66 rating, it offers robust protection against dust and water ingress, ensuring long-lasting performance in various environmental conditions.

Advantages

This junction box simplifies cable management and provides a clean, professional installation. Its integrated cable management system helps organize and protect cables, reducing the risk of damage. The PFA134-B is compatible with a wide range of Dahua dome cameras, making it a versatile choice for security system integrators. The wall and ceiling mount options offer flexibility in installation, and the load-bearing capacity of 1 kg ensures secure camera mounting.

Suitable for

• Dahua dome cameras (e.g., IPC-HDBWxxxx, HAC-HDBWxxxx series)
• Indoor and outdoor surveillance installations
• Wall and ceiling mount applications

Key specifications

• Material: Aluminum
• Color: Black
• Ingress Protection: IP66
• Mounting Type: Wall Mount, Ceiling Mount
• Load Bearing Capacity: 1 kg (2.2 lbs)
• Operating Temperature: -40°C to +60°C (-40°F to +140°F)
• Operating Humidity: 0~90% RH
• Thread Type: G1/2"
• Cable Management: Integrated
• Dimensions (Diameter x Height): Φ100mm x 43.2mm
• Net Weight: 0.23 kg (0.51 lbs)
• Certifications: CE, FCC

Recommendations

For optimal performance and longevity, ensure that the junction box is properly sealed and mounted according to the manufacturer's instructions. Use appropriate cables and connectors compatible with G1/2" thread type.
