Eaton parallelbro DILM32-XP2 (239371)

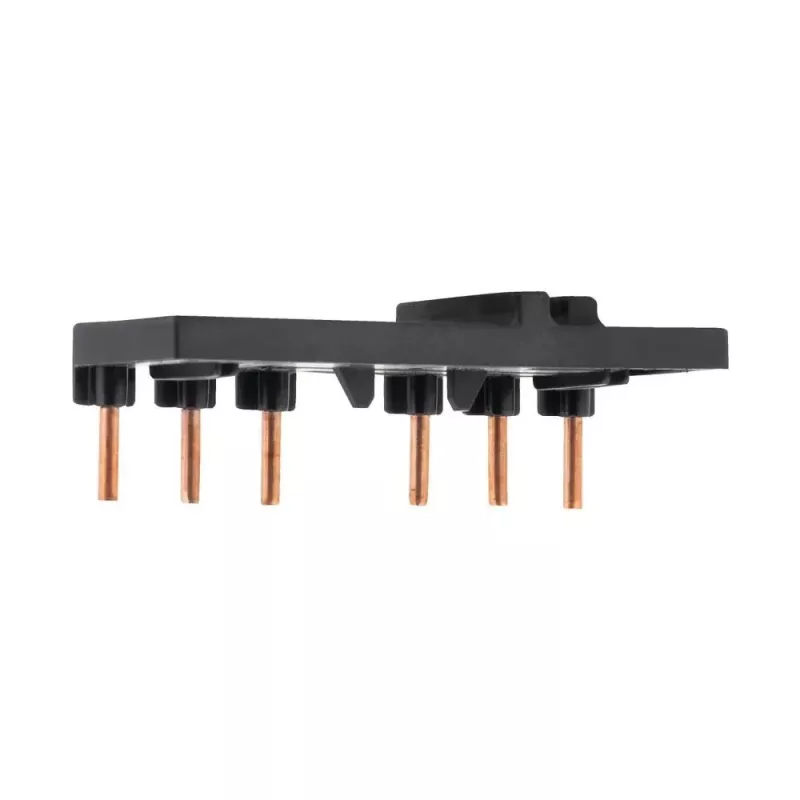

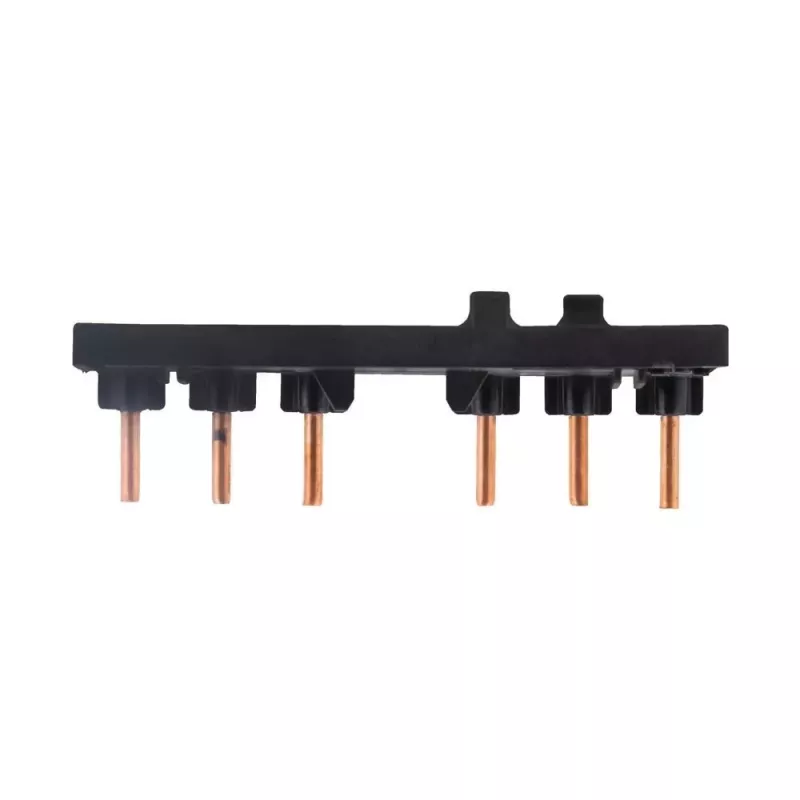

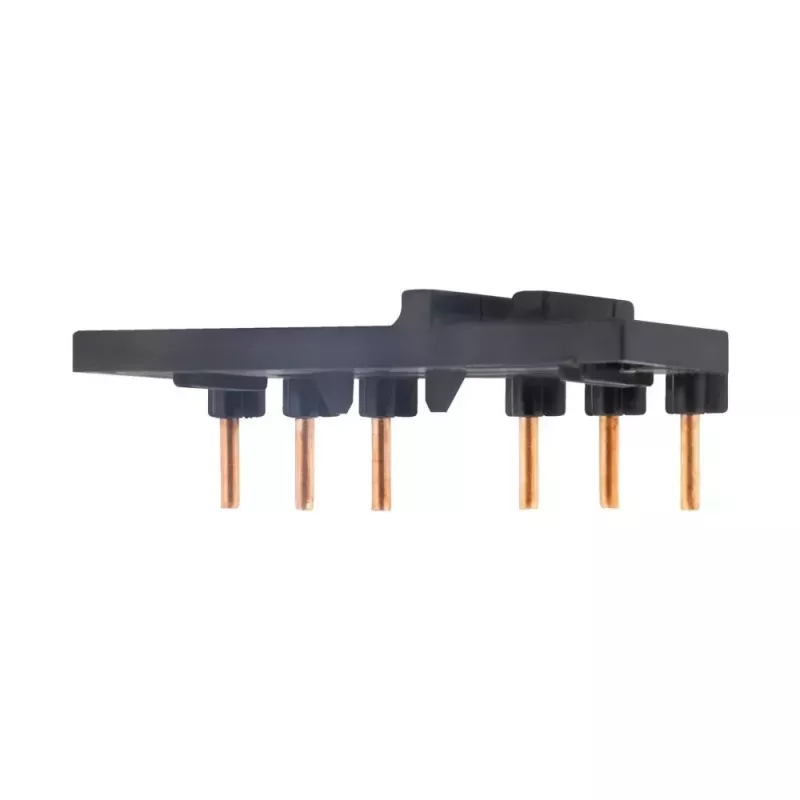

When a single contactor cannot handle the required current, this parallel bridge connects two Eaton DILM32 contactors to share the load. It mounts directly onto the contactors, eliminating the need for additional wiring or busbar assembly.

Who is it for

Industrial control panel builders and maintenance technicians who need to increase current capacity or provide redundancy in motor control circuits using Eaton DILM32 contactors.

Main features

• Parallel connection for two DILM32 contactors
• 3-pole design
• Direct plug-in mounting
• Rated operational voltage up to 690 V
• Rated insulation voltage 690 V
• Rated impulse withstand voltage 6 kV

Specifications

• Product type: Parallel bridge
• Compatibility: Eaton DILM32 contactors
• Number of contactors connected: 2
• Number of poles: 3
• Connection type: Parallel
• Mounting type: Direct plug-in
• Rated operational current: Up to 32 A (dependent on contactor rating)
• Rated operational voltage: Up to 690 V
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Operating temperature range: -25 to +60 °C
• Storage temperature range: -40 to +80 °C
• Degree of protection: IP20 (when installed)
• Material: High-grade insulating material, copper conductors
• Series: DILM

Tips

Ensure both contactors are identical DILM32 models and properly secured before installing the bridge. Verify that the total load current does not exceed the combined rating of the parallel contactors.
