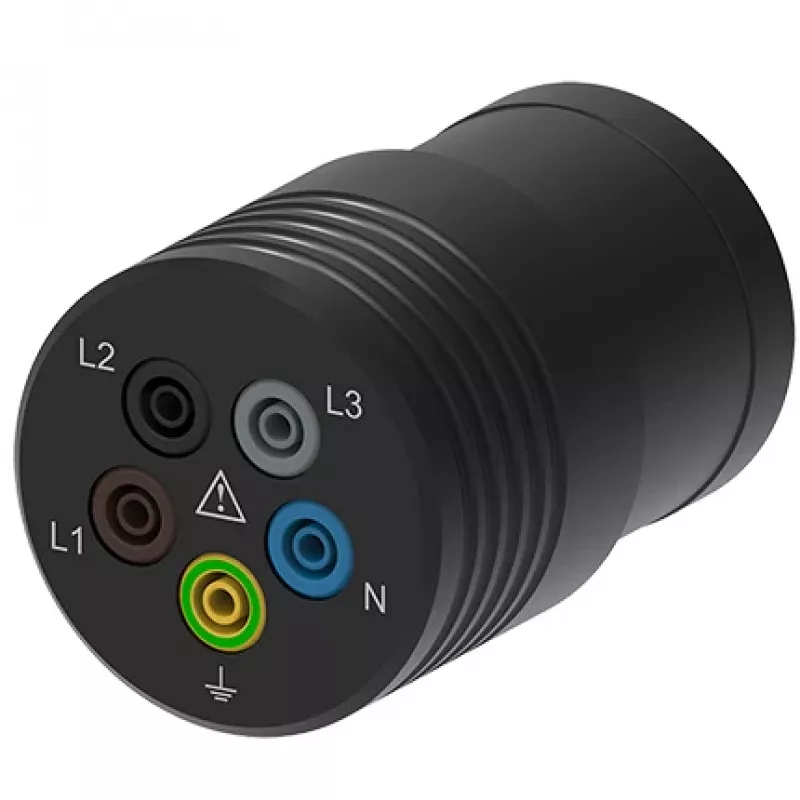

HT Instruments DAA-32 måleadapter 2002950

Electrical safety testing often requires a reliable connection between the installation and the test instrument. The HT Instruments DAA-32 Measuring Adapter provides a secure link between a Schuko socket and compatible HT multifunction testers, enabling automated verification of RCDs, loop impedance, insulation, and continuity.

Who is it for

Electricians and testing professionals who use HT Instruments multifunction testers such as MACROTEST G3, COMBI G3, or GSC series and need a safe, convenient way to connect to mains power for testing.

Main features

• Schuko plug (Type F) for direct connection to standard European mains sockets
• Three 4mm safety banana sockets (L, N, PE) for tester connection
• Integrated test button and LED indicators for correct wiring and phase detection
• Double insulation and CAT III 300V safety rating
• Robust plastic housing in black/grey

Specifications

• Product type: Measuring Adapter
• Max operating voltage: 250V AC
• Safety category: CAT III 300V
• Operating temperature: 0°C to 40°C
• Storage temperature: -10°C to 60°C
• Relative humidity: <80% RH (non-condensing)
• Protection class: IP40
• Colour: Black/Grey

Tips

Always verify that the socket wiring is correct before starting tests. The LED indicators on the adapter provide immediate feedback on phase and wiring status, helping to avoid measurement errors.
