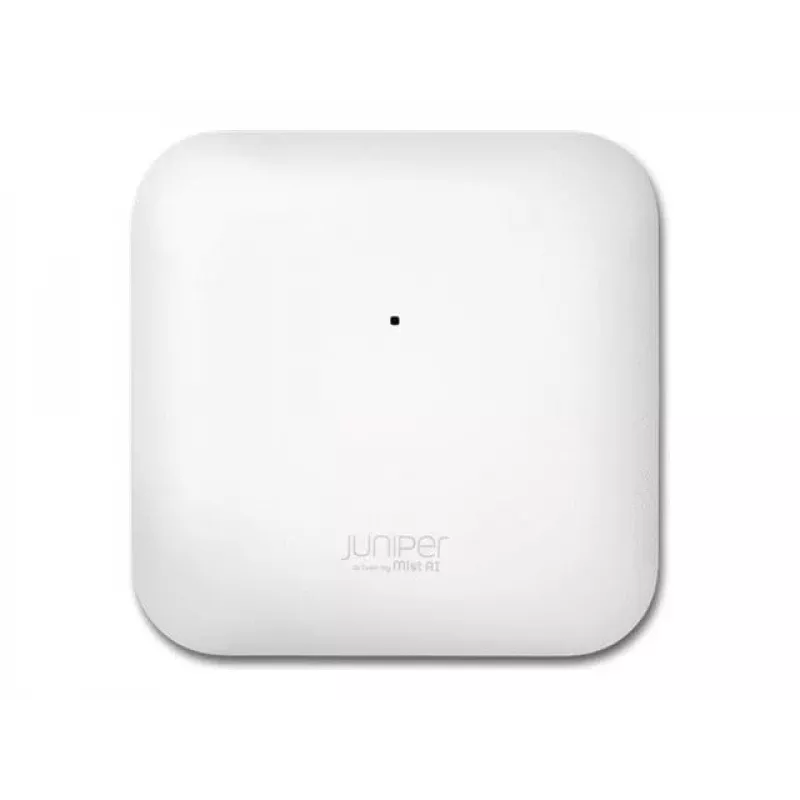

Juniper AP47 - Access Point - Wi-Fi 7, Bluetooth

Enterprise-grade Wi-Fi 7 access point delivering up to 18.7 Gbps aggregate throughput across 2.4 GHz, 5 GHz, and 6 GHz bands. The Juniper AP47-WW leverages 4x4:4 MIMO and 320 MHz channels for ultra-fast, low-latency connectivity in high-density environments. Managed by Juniper Mist Cloud with AI-driven operations, it ensures optimal performance and simplified troubleshooting.

Advantages

Tri-band Wi-Fi 7 with Multi-Link Operation (MLO) reduces latency and increases reliability. Dual Ethernet ports (10G and 2.5G) provide flexible uplink options and PoE++ power. Integrated Bluetooth 5.2, Zigbee, and Thread radios enable IoT convergence. Advanced security with WPA3, MACsec, and stateful firewall protects your network. AI-driven cloud management automates RF optimization and anomaly detection.

Suitable for

• High-density enterprise offices and campuses
• Educational institutions with demanding wireless needs
• Healthcare facilities requiring reliable and secure connectivity
• Large venues and conference centers
• IoT deployments needing BLE, Zigbee, or Thread support

Key specifications

• Wi-Fi Standard: IEEE 802.11be (Wi-Fi 7)
• Frequency Bands: 2.4 GHz, 5 GHz, 6 GHz (Tri-Band)
• MIMO: 4x4:4 per band
• Max Aggregate Throughput: 18.7 Gbps
• Ethernet Ports: 1x 10 Gigabit Ethernet (RJ-45), 1x 2.5 Gigabit Ethernet (RJ-45)
• PoE: IEEE 802.3bt (PoE++) Type 4
• Bluetooth: BLE 5.2
• IoT Protocols: Zigbee, Thread
• Antenna: Internal Omnidirectional
• Management: Juniper Mist Cloud (AI-Driven)
• Security: WPA3, MACsec (802.1AE), Stateful Firewall
• Max Power Consumption: 40W (with USB enabled)
• Mounting: Wall, Ceiling (T-rail)
• Operating Temperature: 0°C to 50°C
• Processor: Quad-core ARM CPU
• Memory: 8GB RAM, 8GB Flash
• USB Port: 1x USB 2.0 Type A
• Multi-Link Operation (MLO): Yes
• 320 MHz Channels: Yes (6 GHz)
• BSS Coloring: Yes

Recommendations

Ideal for organizations ready to adopt Wi-Fi 7 and future-proof their wireless infrastructure. Pair with Juniper Mist AI for maximum operational efficiency and user experience.
