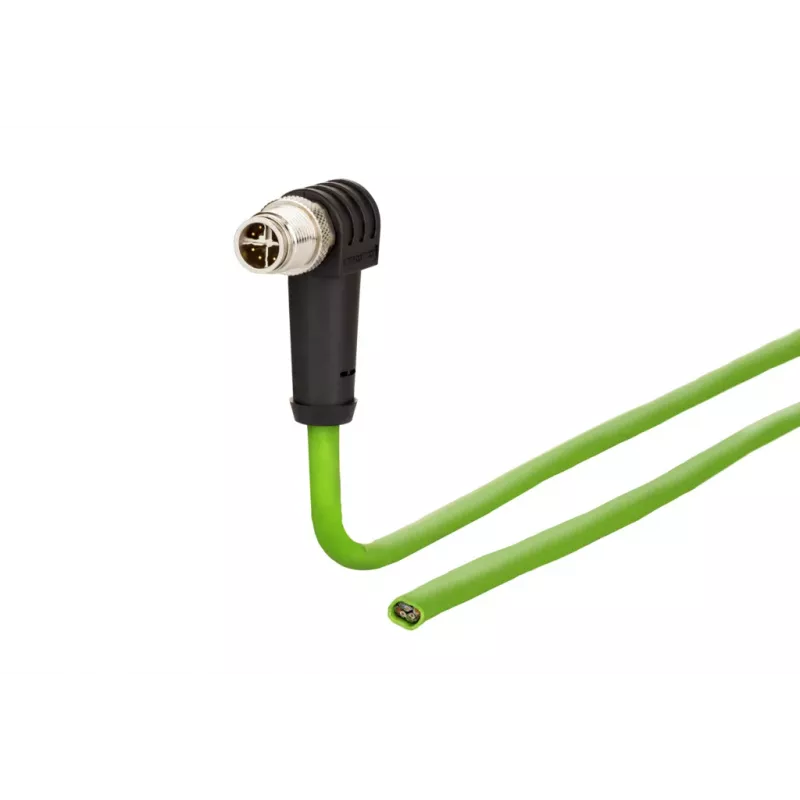

METZ CONNECT 142M2X90050 Cat6a M12 patchkabel 5 m sort

The METZ CONNECT 142M2X90050 is a high-performance Cat6a M12 patch cable designed for industrial Ethernet applications. With a length of 5 meters and robust S/FTP shielding, this cable ensures reliable 10 Gigabit data transmission in harsh environments.

Advantages

This cable offers exceptional data transfer rates up to 10 Gbps and a frequency bandwidth of 500 MHz, making it ideal for demanding industrial networks. Its M12 X-coded connectors provide a secure, IP67-rated connection when mated, protecting against dust and water ingress. The PUR jacket is halogen-free and flame retardant, ensuring safety and durability in industrial settings.

Suitable for

• Industrial Ethernet networks
• Process automation systems
• Machine-to-machine communication
• PoE applications (PoE, PoE+, PoE++)

Key specifications

• Cable Type: Patch Cable
• Category: Cat6a (Class EA)
• Data Transfer Rate: 10 Gigabit Ethernet (10GBase-T)
• Frequency Bandwidth: 500 MHz
• Connector Type: M12 X-coded plug on both ends
• Cable Length: 5.0 m
• Shielding: S/FTP (PiMF)
• Jacket Material: PUR (Polyurethane)
• Jacket Color: Black
• Conductor Material: Stranded Copper (AWG 26/7)
• Number of Pairs: 4
• Pin Assignment: TIA/EIA 568B
• IP Rating: IP67 (when mated)
• Operating Temperature: -40°C to +85°C
• PoE Support: IEEE 802.3af/at/bt (PoE, PoE+, PoE++)
• Halogen-free: Yes
• Flame Retardancy: IEC 60332-1-2

Recommendations

For optimal performance in industrial environments, ensure connectors are properly mated to achieve IP67 protection. This cable is suitable for use with PoE devices up to 100W.
