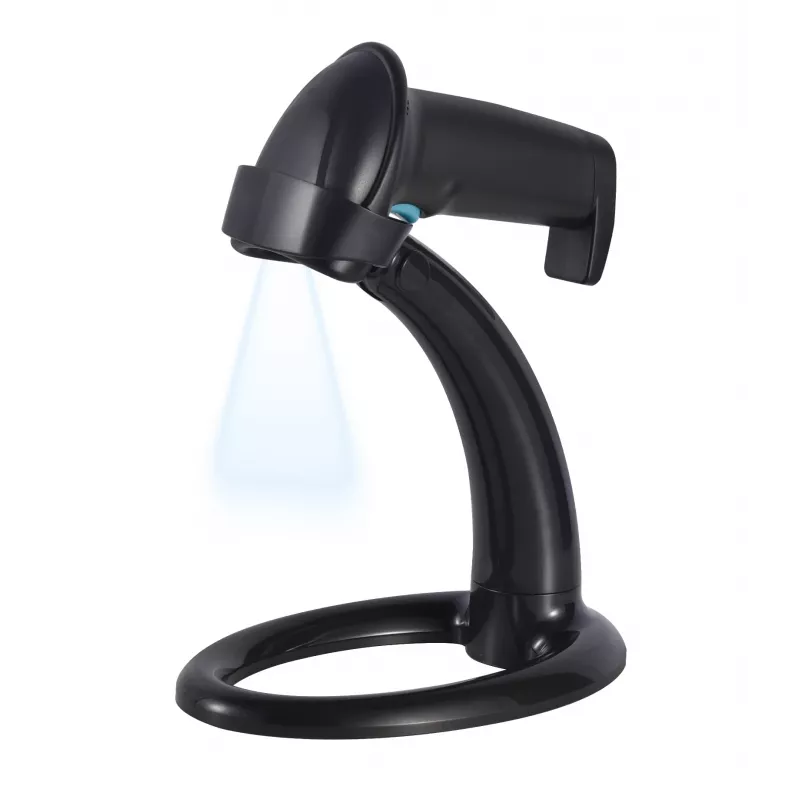

Olympia Barcode Scanner LS 6100 2D LED sort

The Olympia LS 6100 is a high-performance 2D barcode scanner designed for fast and reliable scanning of both 1D and 2D barcodes. With its white LED illumination and CMOS sensor, it captures barcodes quickly and accurately, even from screens. The wired USB connection ensures easy setup and compatibility with various operating systems. Its rugged design includes a 1.5 m drop resistance and IP42 rating, making it suitable for demanding environments like retail, logistics, and warehousing.

Advantages

Fast 60 fps scan speed for efficient workflow; reads 1D and 2D barcodes including QR and Data Matrix; durable with 1.5 m drop protection; IP42 rated against dust and water; plug-and-play USB connectivity; compatible with Windows, macOS, and Linux.

Suitable for

• Retail point-of-sale
• Warehouse and logistics
• Inventory management
• Healthcare and laboratory
• Manufacturing and production

Key specifications

• Data Capture Technology: 2D Imager
• Light Source: White LED
• Sensor: CMOS, 640 x 480 pixels
• Scan Speed: 60 frames/second
• Supported 1D Barcodes: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar
• Supported 2D Barcodes: QR Code, Data Matrix, PDF417, Aztec Code, Maxicode
• Connectivity: Wired USB
• Cable Length: 1.8 m
• Drop Resistance: 1.5 m
• IP Rating: IP42
• Color: Black
• Input Voltage: DC 5V
• Power Consumption: 120 mA
• Operating Temperature: 0 - 50 °C
• Storage Temperature: -20 - 70 °C
• Humidity: 5 - 95% non-condensing
• Indicators: Beeper, LED

Recommendations

For optimal performance, ensure the scanner is connected to a USB port with sufficient power. The device is ready to use out of the box with most systems. For advanced configuration, refer to the user manual.
