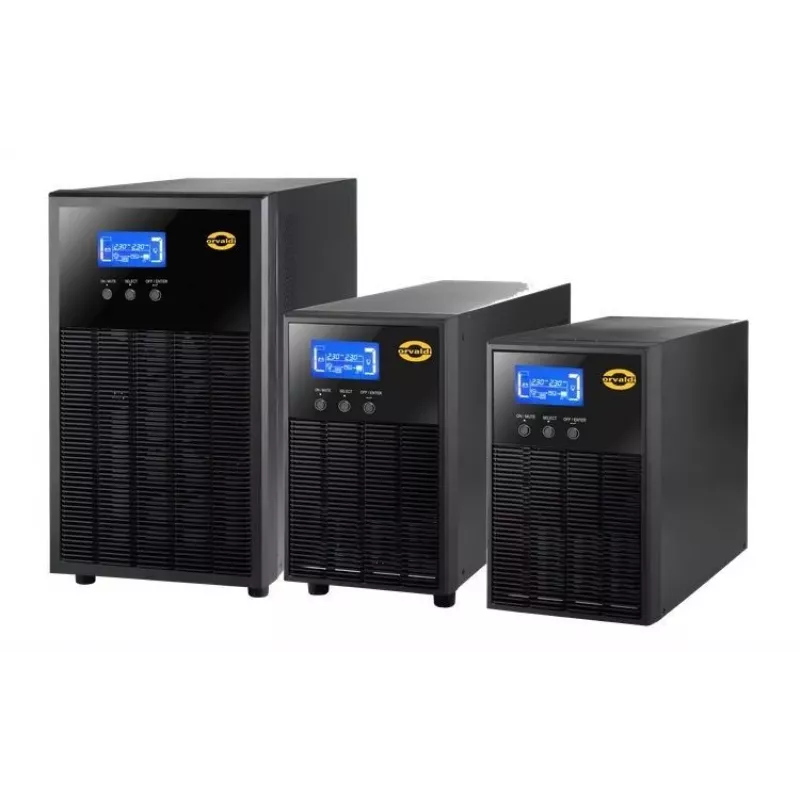

ORVALDI VGIII3K 3000 VA online-tower-UPS

Power outages and voltage fluctuations can damage sensitive electronics and cause data loss. The ORVALDI VGIII3K is an on-line double-conversion UPS that delivers clean, continuous power to servers, network equipment, and other critical devices. With 3000 VA / 2700 W capacity, it ensures your systems stay up during blackouts and protects them from surges, spikes, and electrical noise.

Who is it for

This UPS is ideal for small to medium businesses, IT closets, and advanced home users who need reliable backup power for servers, NAS devices, workstations, and networking gear. Its tower form factor fits easily beside a desk or in a rack with optional mounting accessories.

Main features

• On-line double-conversion topology provides pure sine wave output with zero transfer time.
• 3000 VA / 2700 W capacity supports multiple devices simultaneously.
• Wide input voltage range (110-300 VAC at 50% load) adapts to unstable mains.
• Selectable output voltage (208/220/230/240 VAC) for international compatibility.
• 9 output sockets (8x IEC C13, 1x IEC C19) for versatile connectivity.
• LCD display shows real-time status: load, battery, input/output voltage, and more.
• USB and RS-232 ports plus intelligent slot for optional SNMP/relay card enable remote monitoring.
• ECO mode increases efficiency up to 97% to save energy.
• Automatic and manual bypass ensures continuous power during overload or maintenance.
• Sealed lead-acid batteries (6x 12V/9Ah) provide up to 9 minutes at half load.

Specifications

• Rated power: 3000 VA / 2700 W
• Topology: On-line (double conversion)
• Input voltage range: 110-300 VAC (50% load), 176-300 VAC (100% load)
• Output voltage: 208/220/230/240 VAC selectable
• Output waveform: Pure sine wave
• Output frequency: 50/60 Hz auto-sensing
• Output sockets: 8x IEC C13, 1x IEC C19
• Battery type: Sealed lead acid (VRLA), 6x 12V/9Ah
• Typical recharge time: 4 hours to 90%
• Runtime: ~3 minutes at full load, ~9 minutes at half load
• Communication: USB, RS-232, intelligent slot
• Efficiency: up to 90% (AC-AC), up to 97% (ECO mode)
• Form factor: Tower
• Display: LCD
• Noise level: <50 dB
• Bypass: Automatic and manual
• Software: UPS monitoring software included

Tips

For maximum runtime, connect only essential equipment and consider adding an external battery pack if supported. Use the included software to configure automatic shutdown of connected servers during extended outages. Place the UPS in a well-ventilated area to prolong battery life.
