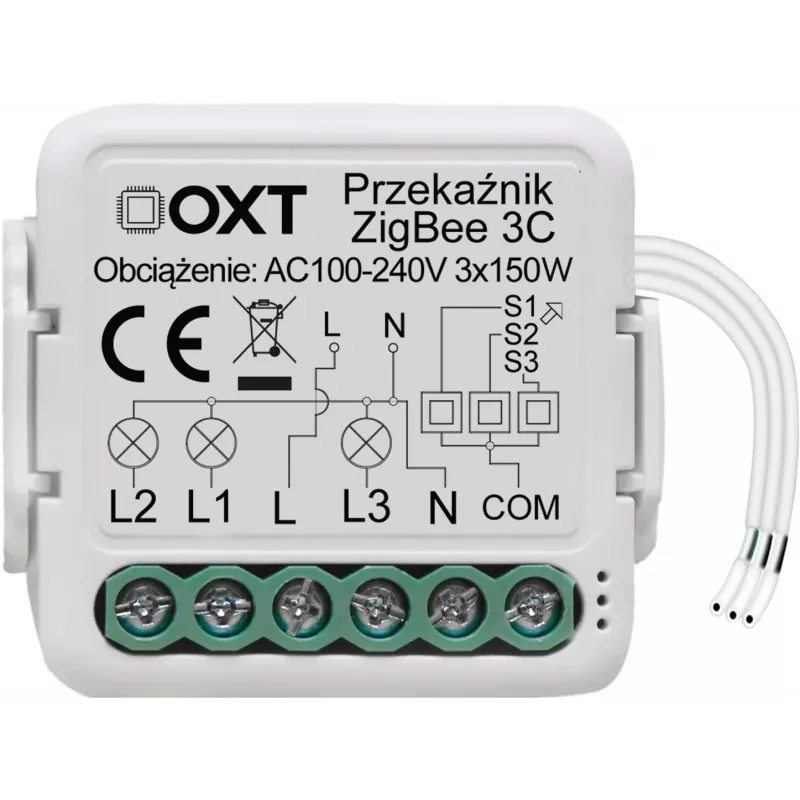

OXT T263 Mini relæ 3-kanal ZigBee TUYA smart switch

The OXT T263 is a compact 3-channel smart relay module designed for home automation. It integrates seamlessly with the Tuya Smart ecosystem via ZigBee 3.0, enabling remote control, voice commands, and automated scenes for lighting and appliances. Ideal for in-wall installation, it supports up to 10A per channel and is compatible with standard junction boxes.

Advantages

This relay offers reliable wireless control, energy monitoring, and easy integration with popular smart home platforms. Its fireproof housing ensures safety, while the compact size fits into tight spaces.

Suitable for

• Smart lighting control (on/off, dimming with compatible switches)
• Automating home appliances (fans, pumps, heaters)
• Retrofit projects requiring wireless switching

Key specifications

• Communication Protocol: ZigBee 3.0
• Smart Home Platform: Tuya Smart / Smart Life
• Number of Channels: 3
• Input Voltage: AC 85-250V, 50/60Hz
• Max Load Current per Channel: 10A
• Max Load Power per Channel: 2500W
• Wireless Standard: IEEE 802.15.4
• Operating Temperature: -20°C to 50°C
• Housing Material: PC V0 Fireproof
• Installation Type: In-wall switch box / Junction box
• Control Methods: App (Remote), Voice (via hub), Manual (via connected switch)
• Smart Features: Timer, Schedule, Scene Control, Group Control
• Gateway Requirement: ZigBee Gateway/Hub Required
• Certification: CE, RoHS
• Standby Power Consumption: <0.5W
• Wiring Configuration: Live (L), Neutral (N) Input; L1, L2, L3 Output

Recommendations

For optimal performance, pair with a compatible ZigBee hub (e.g., Tuya Smart Hub). Ensure proper wiring by a qualified electrician. This device is not a dimmer; use with on/off loads only.
