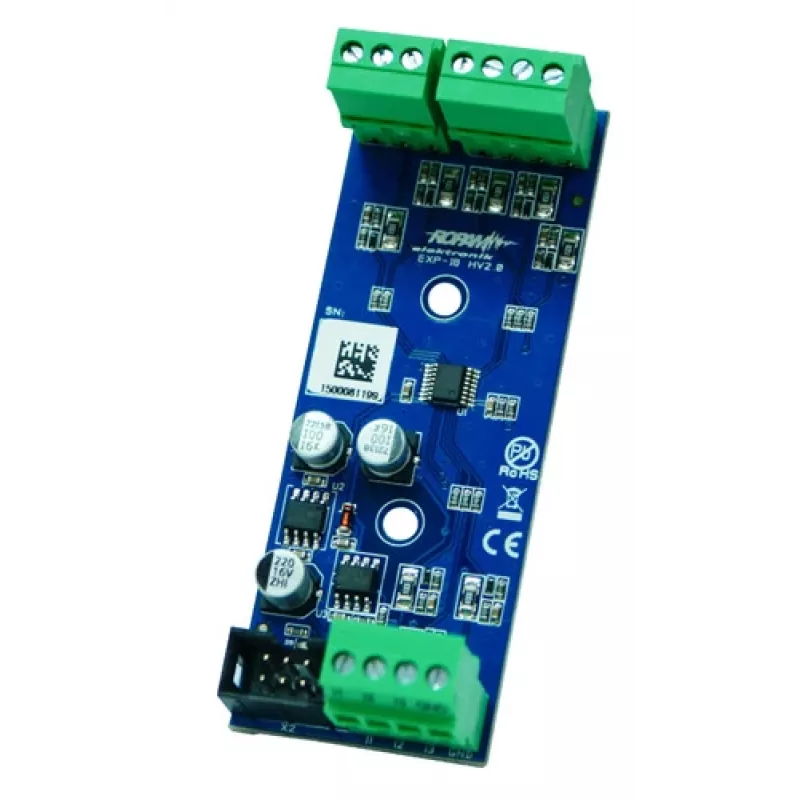

ROPAM EXP-I8 inputudvidelsesmodul

The ROPAM EXP-I8 is an 8-input expander module designed to extend the input capacity of Ropam NEO, OPTIMA, and VISION series control panels. It connects via the RopamNET 4-wire bus and supports programmable inputs including NO/NC, EOL, 2EOL, analog 0-10V, and temperature sensors. Ideal for expanding alarm systems in residential and commercial installations.

Advantages

Easy DIN rail or surface mounting, low power consumption (max 30 mA), and firmware upgradeable via RopamNET. Overvoltage protection ensures reliability.

Suitable for

• Expanding alarm input zones
• Analog sensor integration (0-10V)
• Temperature monitoring with NTC/PT1000 sensors

Key specifications

• 8 programmable inputs (NO/NC, EOL, 2EOL, analog, temperature)
• RopamNET bus communication
• Power supply: 10-16V DC via bus
• Current consumption: max 30 mA
• Operating temperature: -10°C to +55°C
• DIN rail (TS-35) or surface mount
• Plastic enclosure, 2 DIN modules

Recommendations

Use with Ropam NEO, OPTIMA, or VISION panels. Configure input types via the panel software. Ensure proper EOL resistor values as per installation manual.
