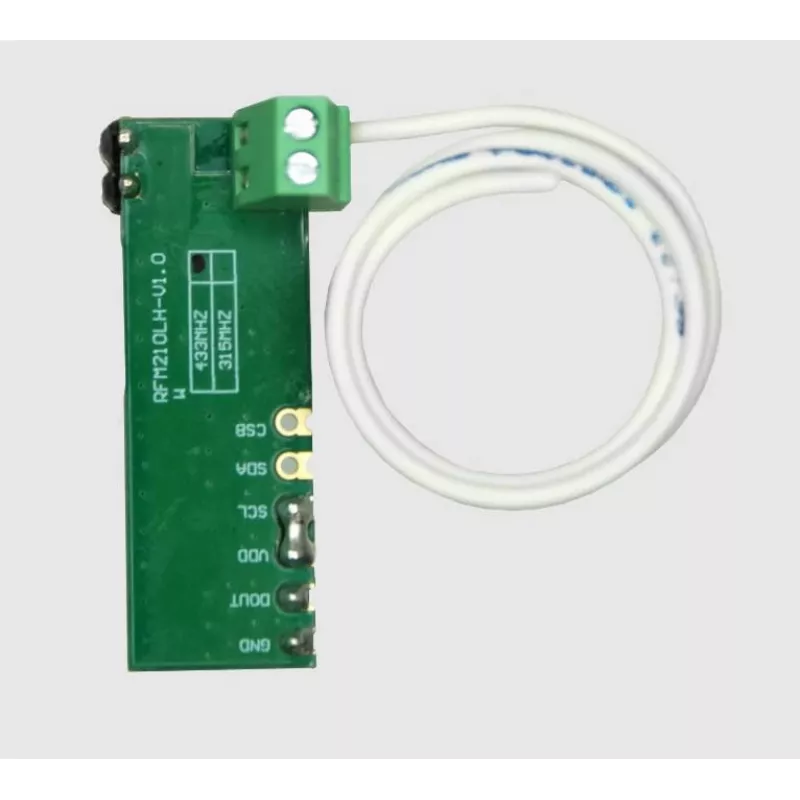

ROPAM EXP-RF RF-modtagermodul 433,92 MHz

The ROPAM EXP-RF is a high-performance RF receiver module designed for seamless integration with Ropam alarm systems. Operating at 433.92 MHz, it supports up to 32 wireless devices including detectors, keyfobs, and sirens, making it an ideal solution for expanding your security system wirelessly.

Advantages

Easy to install within the control panel enclosure, the EXP-RF communicates via the Ropam 4-wire bus, ensuring reliable data exchange. Its KEELOQ security protocol provides encrypted communication for keyfobs, enhancing system security. The module features an SMA antenna connector for external antenna use, extending wireless range up to 100 meters in open areas.

Suitable for

• Alarm systems and home automation projects requiring wireless expansion
• Integration with Ropam NeoGSM-IP, OptimaGSM, BasicGSM 2, MultiGSM, and other Ropam bus-compatible systems
• Adding wireless detectors, keyfobs, or sirens to existing wired alarm panels

Key specifications

• Product Type: RF Receiver Module
• Operating Frequency: 433.92 MHz
• Supported Wireless Devices: Up to 32
• Communication Bus: Ropam 4-wire bus
• Power Supply Voltage: 10V - 14V DC (from main panel bus)
• Max Current Consumption: 30 mA
• Antenna Connector: SMA (external antenna)
• Wireless Range (Open Area): Up to 100 meters
• RF Modulation: ASK
• Security Protocol: KEELOQ (for keyfobs)
• Operating Temperature: -10°C to +55°C
• Mounting: Internal (within control panel enclosure)
• Status Indicators: LED (power, communication, signal)
• Firmware Update: Supported via main control panel
• Max Bus Cable Length: 300 meters

Recommendations

For optimal performance, use with Ropam compatible control panels and ensure proper antenna placement. The module is designed for indoor use within the control panel enclosure.
