TRYTYT Varmekrympesæt sort RT-BOX100-10CZ

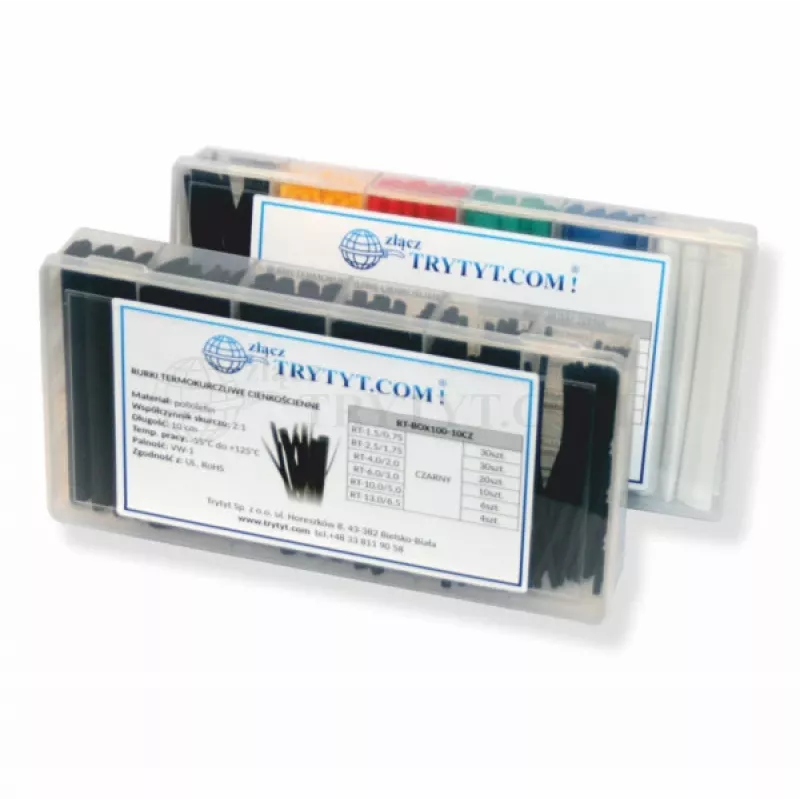

The TRYTYT Heat Shrink Tubing Set RT-BOX100-10CZ is a comprehensive kit of 100 black polyolefin heat shrink tubes in 10 different sizes, ideal for electrical insulation, cable bundling, and wire protection. Supplied in a convenient storage box, this set offers a 2:1 shrink ratio and excellent dielectric strength, making it suitable for professional and DIY applications.

Advantages

This set provides a versatile range of diameters to accommodate various wire gauges, ensuring a secure and insulated connection. The polyolefin material is halogen-free and RoHS/REACH compliant, offering environmental safety. With a wide operating temperature range (-55°C to 125°C) and VW-1 flammability rating, it delivers reliable performance in demanding conditions.

Suitable for

• Electrical insulation of wires and cables
• Cable bundling and organization
• Protection against abrasion and moisture
• Automotive, marine, and industrial applications
• DIY electronics and repairs

Key specifications

• Product Type: Heat Shrink Tubing Set
• Colour: Black
• Quantity: 100 Pieces
• Material: Polyolefin
• Shrink Ratio: 2:1
• Operating Temperature Range: -55°C to 125°C
• Minimum Shrinkage Temperature: 70°C
• Full Shrinkage Temperature: 110°C
• Dielectric Strength: 15 kV/mm
• Flammability Rating: VW-1
• Included Sizes (Diameter x Length): 1.0mm x 100mm (20 pcs), 1.5mm x 100mm (20 pcs), 2.5mm x 100mm (10 pcs), 3.0mm x 100mm (10 pcs), 3.5mm x 100mm (10 pcs), 5.0mm x 100mm (5 pcs), 6.0mm x 100mm (5 pcs), 8.0mm x 100mm (5 pcs), 10.0mm x 100mm (5 pcs), 13.0mm x 100mm (10 pcs)
• Total Length: 10 meters
• Halogen-Free: Yes
• Tensile Strength: 10.4 MPa
• Elongation at Break: 200%
• Storage Box Included: Yes

Recommendations

For best results, ensure the tubing is fully shrunk at the recommended temperature. Use a heat gun or hot air blower evenly around the tube. Store in a cool, dry place away from direct sunlight.
