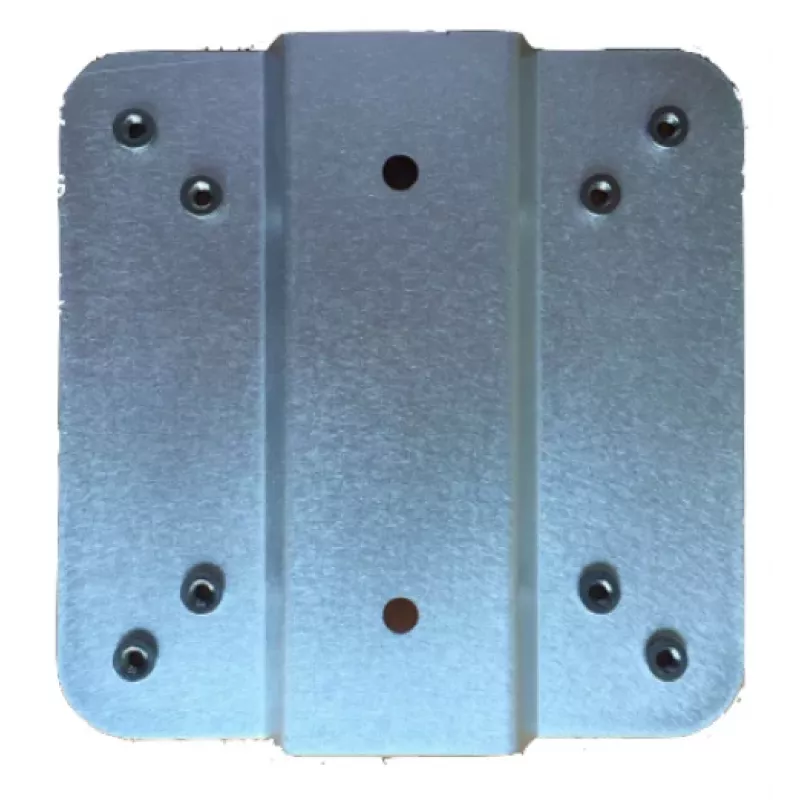

Zebra BRACKET: VESA-HOLDER TIL

Secure your Zebra VESA-compatible device with this rugged steel mounting bracket, offering a fixed, dependable hold for tablets, displays, and mobile computers in demanding environments. Its powder-coated finish resists corrosion, while the included M4 hardware ensures quick, screw-in installation on walls, desks, or poles with an optional adapter.

Advantages

Built from high-grade steel with a black powder-coated finish, the bracket withstands industrial, commercial, retail, and healthcare settings. It supports up to 8 kg (17.6 lbs) and is compatible with VESA MIS-D 75x75 mm and 100x100 mm patterns, making it versatile for a range of Zebra devices. The fixed position provides stability, and the included mounting hardware simplifies setup.

Suitable for

• Point-of-sale terminals and kiosks in retail
• Wall-mounted patient information displays in healthcare
• Fixed workstations in warehouses and manufacturing
• Digital signage in commercial spaces
• Pole-mounted devices with an additional adapter

Key specifications

• VESA compatibility: 75 x 75 mm and 100 x 100 mm (MIS-D)
• Material: High-grade steel, powder-coated black
• Maximum load: 8 kg (17.6 lbs)
• Mounting locations: wall, desk, pole (adapter required for pole)
• Adjustability: fixed position
• Included hardware: M4 screws and washers
• Operating temperature: -20°C to 60°C (-4°F to 140°F)
• Storage temperature: -30°C to 70°C (-22°F to 158°F)
• Humidity: 5% to 95% non-condensing
• Certifications: RoHS, CE, FCC
• Corrosion resistant

Recommendations

Verify your device's VESA pattern and weight before installation. For pole mounting, use a compatible VESA pole adapter. Ensure the mounting surface can support the combined weight of the bracket and device. Tighten all screws securely and periodically check for stability in high-vibration environments.
