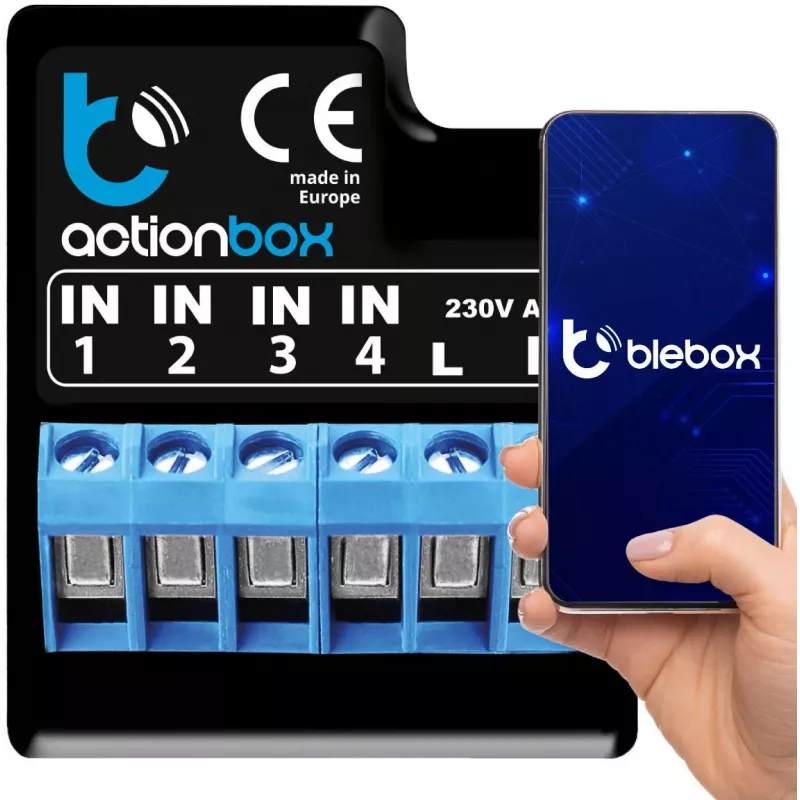

BLEBOX Actionbox binært inputmodul

The BLEBOX Actionbox is a compact binary input module designed for smart home and industrial automation. It allows you to connect up to four potential-free binary inputs (e.g., switches, sensors, push buttons) and monitor their status via Wi-Fi. The module works with the BleBox App, web browser, REST API, and MQTT, enabling seamless integration with Google Home, Amazon Alexa, and Home Assistant. With support for 12-24V DC or 230V AC power supply, it is suitable for flush-mount installation in standard electrical boxes.

Advantages

Easy to install and configure, the Actionbox offers reliable input monitoring and automation. Its compact design fits into a Ø60mm flush-mount box, and firmware updates are delivered over-the-air (OTA). The module supports multiple input signal modes (momentary, toggle, edge detection) and can trigger scenes, notifications, and status changes.

Suitable for

• Smart home automation (lighting, door/window sensors, push buttons)
• Industrial control and monitoring
• Integration with voice assistants and home automation platforms

Key specifications

• Wireless Connectivity: Wi-Fi 2.4GHz (802.11 b/g/n)
• Number of Inputs: 4 (binary, potential-free)
• Power Supply: 12-24V DC / 230V AC
• Control Interface: BleBox App, Web Browser, REST API, MQTT
• Operating Temperature: -20°C to 50°C
• Mounting: Flush-mount (Ø60mm electrical box)
• Smart Home Compatibility: Google Home, Amazon Alexa, Home Assistant
• Max Input Signal Voltage: Up to 230V AC (when powered by 230V AC)
• Power Consumption: <1W
• Ingress Protection: IP20
• Input Signal Modes: Momentary, Toggle, Edge Detection
• Automation Features: Scene control, Notifications, Input status monitoring
• Firmware Updates: Over-the-air (OTA)
• Enclosure Material: Plastic

Recommendations

For best performance, use a stable 2.4GHz Wi-Fi network. Ensure the module is installed in a dry indoor location (IP20). The Actionbox is ideal for retrofitting existing wired switches or sensors into a smart home system.
