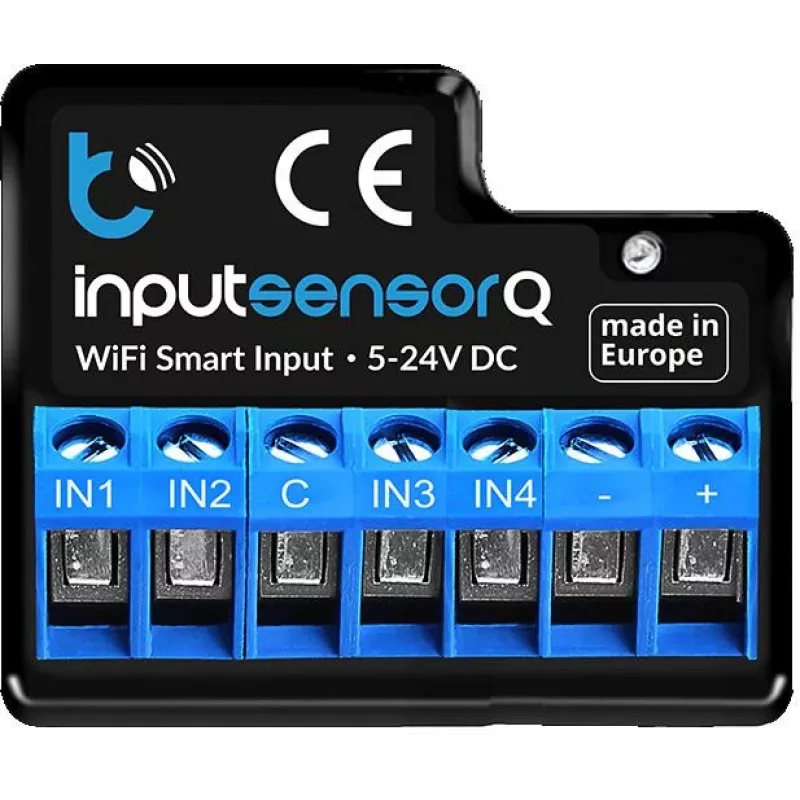

BLEBOX inputSensorQ WiFi 4-input-modul

The BLEBOX inputSensorQ is a compact WiFi module with 4 potential-free digital inputs, designed for monitoring and automation in smart home and industrial environments. It integrates seamlessly with the wBox app, REST API, and MQTT, and supports voice control via Amazon Alexa and Google Assistant.

Advantages

Easy to install in standard in-wall boxes or on surfaces. Low power consumption (<1W) and wide operating temperature range (-20°C to 50°C). Firmware updates over-the-air ensure future-proof operation.

Suitable for

• Monitoring door/window contacts, motion detectors, and other dry contact sensors
• Integration with home automation systems via WiFi
• Industrial control and status monitoring

Key specifications

• Number of Inputs: 4 (digital, potential-free)
• Connectivity: WiFi 802.11 b/g/n (2.4 GHz)
• Power Supply: 12-24V DC
• Power Consumption: <1W
• Operating Temperature: -20°C to 50°C
• Dimensions: 48 x 30 x 20 mm
• Mounting: In-wall box or surface mount
• Housing Material: ABS Plastic
• Certifications: CE, RoHS

Recommendations

For best performance, use with a stable 2.4 GHz WiFi network and a 12-24V DC power supply. Compatible with Google Home and Amazon Alexa via the wBox app.
